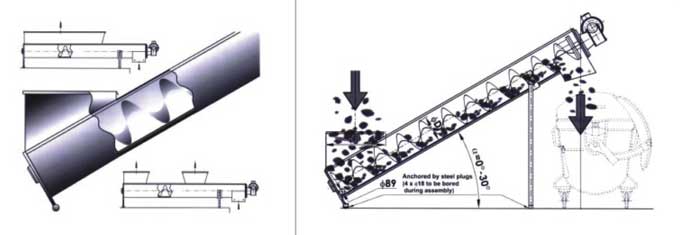

Does not have the axis spiral conveyer in one kind does not have the central shaft depending on the helicoids revolving transportation material equipment, mainly uses in transporting the sludge, the grid dregs and so on, the conveyer transports the direction, but the bidirectional transportation, this conveyer may the custody transfer, prevent the environmental pollution.
| 参数/型号 | 螺旋直接(mm) | 各安装角度下的输送能力(m³/h) | 输送长度在10
米的功率 | | 0° | 20° | 30° | | ZWS-225 | 225 | 2.5 | 1.8 | 1.2 | 1.5kw | | ZWS-250 | 250 | 2.8 | 2.0 | 1.5 | 1.5kw | | ZWS-320 | 320 | 5.2 | 4.1 | 3.0 | 2.2kw | | ZWS-360 | 360 | 9.6 | 6.9 | 4.2 | 3kw | | ZWS-400 | 400 | 13.6 | 9.8 | 6.3 | 4kw |
|
